Script-based

Introduction

This guide walks you through the script-based onboarding flow for connecting an AWS account to the Xshield Cloud Connector.

This method requires you to deploy a CloudFormation stack in your AWS account using the provided deployment script. The stack creates the cross-account IAM role and permissions needed for Xshield to discover and monitor AWS resources.

What the Script Does

The AWS deployment script deploys (or removes) a CloudFormation stack in the target AWS account.

Deploy Action

When run in deploy mode, the script:

Verifies your AWS CLI profile is authenticated to the target AWS account
Deploys a CloudFormation stack that creates the required cross-account IAM role and permissions
Optionally enables additional permissions such as:
- S3 read access (for flow log analysis) using --storage-access
- Read-write permissions (if enabled) using --read-write
- XCloud permissions (enabled by default) using --deploy-xcloud / --no-deploy-xcloud

Cleanup (Delete) Action

When run with --cleanup, the script deletes the CloudFormation stack and removes the IAM resources created by the stack.

Step 1: Download and Run the Script

Download the AWS deployment script and run it in the AWS account you want to onboard.

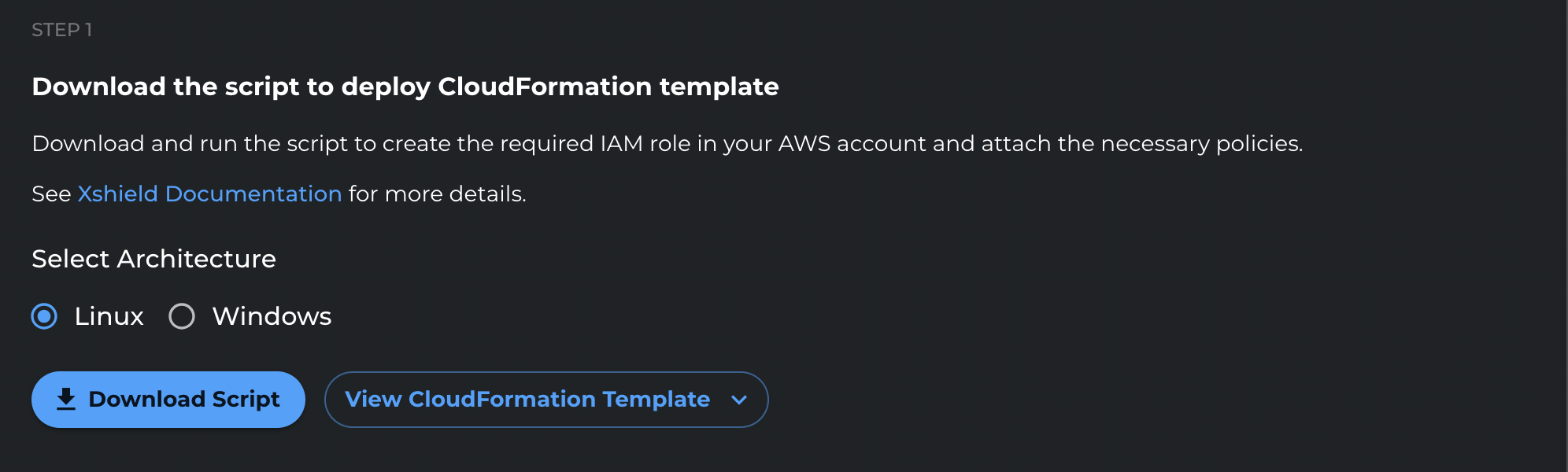

Manual onboarding - download script

Select the appropriate operating system (Linux or Windows).
Click Download Script to download the deployment script.
To review the permissions being deployed, click View CloudFormation Template.
Ensure your AWS CLI is authenticated to the target AWS account.

If you use SSO or a federated login, authenticate using your standard workflow for your environment.

To validate your active credentials, run:
```
aws sts get-caller-identity --profile <AWS_PROFILE>
```
Download the script:

deploy-colortokens-aws-stack.sh

Ensure the script is executable:

chmod +x deploy-colortokens-aws-stack.sh

Run the script to deploy the CloudFormation stack:

./deploy-colortokens-aws-stack.sh \
  --aws-profile <AWS_PROFILE> \
  --target-account <TARGET_AWS_ACCOUNT_ID> \
  --colortokens-account <COLORTOKENS_AWS_ACCOUNT_ID> \
  --xcloud-account <XCLOUD_AWS_ACCOUNT_ID> \
  --region <AWS_REGION>

Optional flags:

--storage-access
--read-write
--no-deploy-xcloud

To remove the CloudFormation stack instead of deploying it, run:

./deploy-colortokens-aws-stack.sh \
  --aws-profile <AWS_PROFILE> \
  --target-account <TARGET_AWS_ACCOUNT_ID> \
  --colortokens-account <COLORTOKENS_AWS_ACCOUNT_ID> \
  --xcloud-account <XCLOUD_AWS_ACCOUNT_ID> \
  --region <AWS_REGION> \
  --cleanup

Repeat this step for each AWS account you want to onboard.

Step 2: Enter Account Details

After the CloudFormation stack is deployed, provide the AWS account details in the Xshield portal.

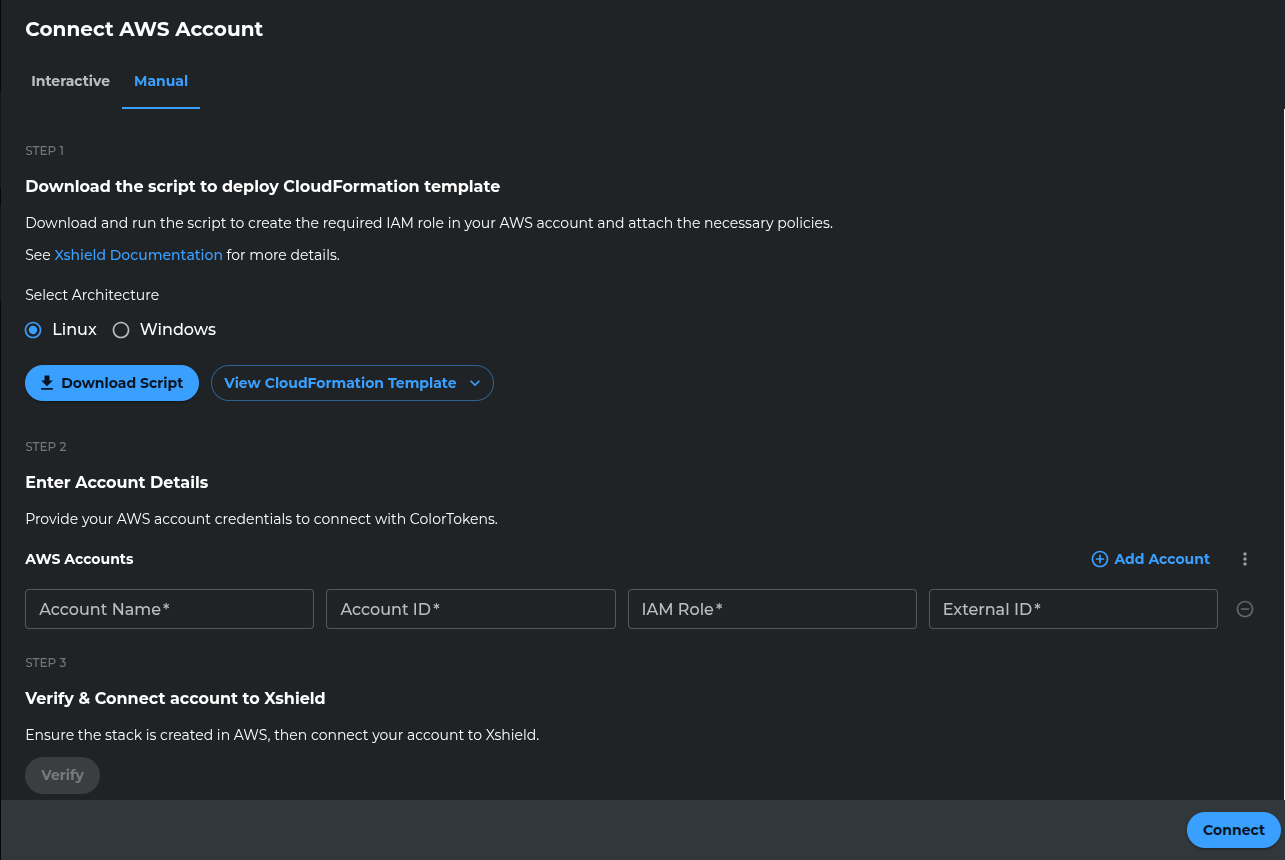

Manual onboarding - overview

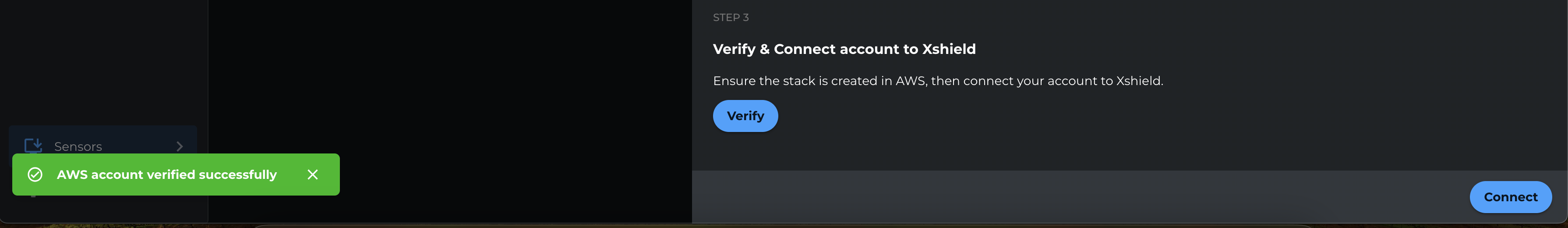

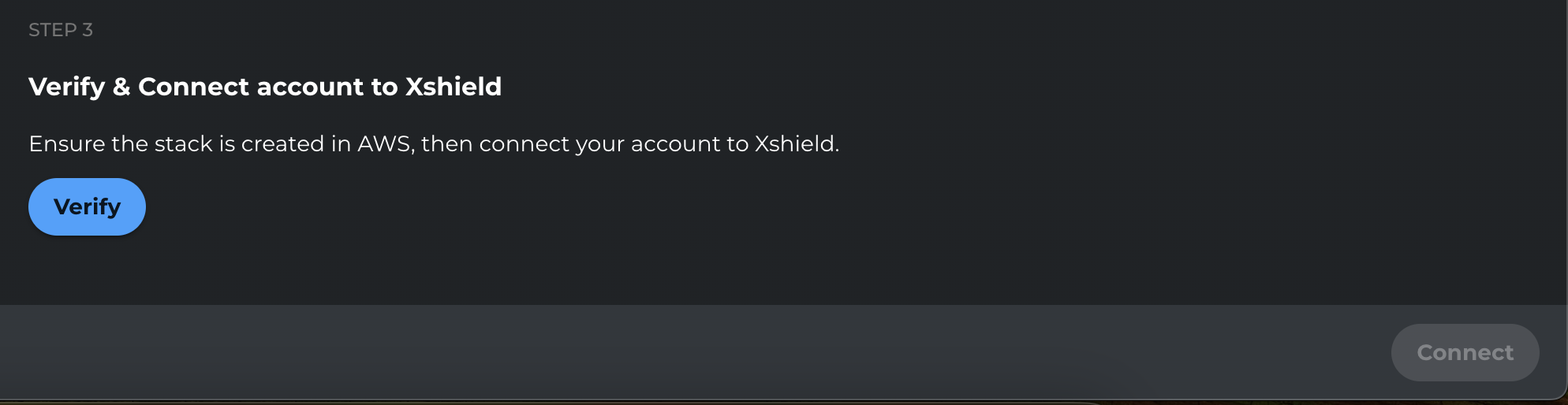

Enter your Account Name and Account ID, then click Verify.
After verification completes, click Connect.

Step 3: Confirm Account Connection

Confirm that the AWS account is connected and appears in the Xshield platform.

Manual onboarding - connection complete

Next Steps

After the AWS account is connected:

Your AWS resources will begin appearing in the Xshield platform
Network traffic analysis will be available when VPC Flow Logs are enabled and accessible
Application trace visibility will be available when AWS X-Ray is enabled and accessible
To grant or revoke access to the flow logs bucket (for network traffic visibility), see VPC Flow Logs.
